Capture Card Details

This tutorial provides a step-by-step guide to setting up a payment page hosted in Zuora. You will implement a payment method creation flow to collect your customers' payment method information and store it in Zuora in a PCI-compliant way. Checkout flow is not covered in this tutorial.

In this tutorial, you will need to complete tasks illustrated in the following diagram:


With Zuora's ready-to-use web server, you can easily get your payment page up and running without setting up a server from scratch.


When your customers sign up for your website, you want to collect their credit card information, which will be used for your customers’ one-time or recurring payments in the future. You want to add a PCI-compliant page for collecting credit card information to the signup experience. Here is your plan for the hosted payment page:

  • Accepted payment method: Credit Card
  • Information to be collected:
    • Card type
    • Card number
    • Expiration date
    • CVV (Card Verification Value)
    • Card holder name
    • Card holder address
  • Look and feel: embedded in the page
  • Security requirements:
    • Limit the number of times a hosted payment page can be submitted from the same IP address within a time range.
    • Limit the number of times a hosted payment page can be submitted before page submission is blocked.
    • Check whether the required input fields are valid.

You will use Zuora’s Payment Pages 2.0 solution to embed an iFrame form into the page. The embedded form contains an internal submit button and the form submission will be handled by Zuora.


  • Ensure that you have installed Node 16 or higher. To download Node, check Download Node .
  • You have an active GitHub account.
  • You have a sandbox environment in Zuora. If you do not have one, sign up on Zuora Test Drive for a free trial.
  • You must use a user with the API Write Access permission to access the sandbox environment.

Implementation steps

In your sandbox environment, complete the following tasks. We will use the API sandbox environment of US Cloud Data Center 2 as the sample environment in this tutorial.

For a complete list of URLs for Zuora environments, see Zuora Data Centers.

Step 1 Set up a test gateway instance

If you already have a Test Gateway instance, skip this step. If you have NOT set up a Test Gateway instance on your tenant, complete the following steps.

  1. Click your username in the upper right and navigate to Settings > Payments > Setup Payment Gateway .
  2. On the Configure Gateway Instance tab, select Test Gateway from the Gateway Type drop-down list at the bottom of the page.
  3. Click Create Gateway .
  4. On the New Gateway page, enter a name for your gateway instance in the Name field, and keep the default value for all other fields. If you want to learn more about the configuration fields, see Set up payment gateways .
  5. Click Save Gateway Information .

Step 2 Create a hosted payment page

Create and configure a hosted payment page

  1. In Zuora, click your username in the upper right and navigate to Settings > Payments > Setup Payment Page and Payment Link .
  2. On the Payment Pages tab, click Get HPM 2.0 Key in the Security Keys section. A file containing a public key will be downloaded. You will need to pass it as one of the parameters when you load the hosted payment page in a later step.
  3. On the Payment Pages tab, you can configure the IP-Based Submission Rate Limiting feature in the Rate Limiting Configuration section. Keep IP Whitelist empty and keep the default values for other fields. You can find the default value in the tooltip.

    In this tutorial, we will NOT enable the following tenant-level settings. If you want to know about these settings, see Tenant-level settings for Payment Pages 2.0:

    • Google reCAPTCHA Enterprise Configuration
    • Raw Gateway Info Configuration
    • Advanced Configuration
      • Validate Client-Side HPM Parameters
      • Allow Subdomain Callback For Hosted Pages
  4. At the bottom of the page, select Credit Card from the Type list, and then click Create New Hosted Page .
  5. Configure the page-level settings for the hosted payment page. To complete this tutorial, use the value suggested in the Value column in the following table. To learn more about the settings, see Configure Credit Card Type Payment Pages 2.0 .
Section Setting Value
Basic Information Page Name Enter My First Payment Page
Hosted Domain Enter http://localhost:3000
Callback Path Enter /payment_page/callback
Security Information Google reCAPTCHA Keep the default values for all settings.

Token Expiration will be enabled. Google reCAPTCHA or 3D Secure will not be enabled.

Token Expiration
3D Secure
Payment Gateway Default Payment Gateway Select the test gateway instance.
Page Configuration Page Title Enter Credit Card Payment.

Keep Display selected.

Page Description Enter This card will be used in future payments.

Keep Display selected.

Page Fields Keep the default configuration.

The screenshot after this table shows an example.

Submit Button Enter Submit.
Client-Side Validation Keep Enable client-side validation selected.

Keep the default value for error messages.

Credit Card Type Detection Keep Enable automatic credit card type detection selected.
CSS Keep the default CSS.

Payment Page Form Configuration

  1. Click Generate and Save Page .
  2. A message will appear to prompt you that Google reCAPTCHA or Token Expiration security settings are enabled. Scroll down to the message dialog and click OK .

Preview your hosted payment page

After you save your hosted payment page, the Preview Hosted Payment Method Page page is displayed. In the Page Preview section, use the following default configuration and preview your page:

  • Form Type : Inline
  • Locale : English (en)

Your page will look like this:

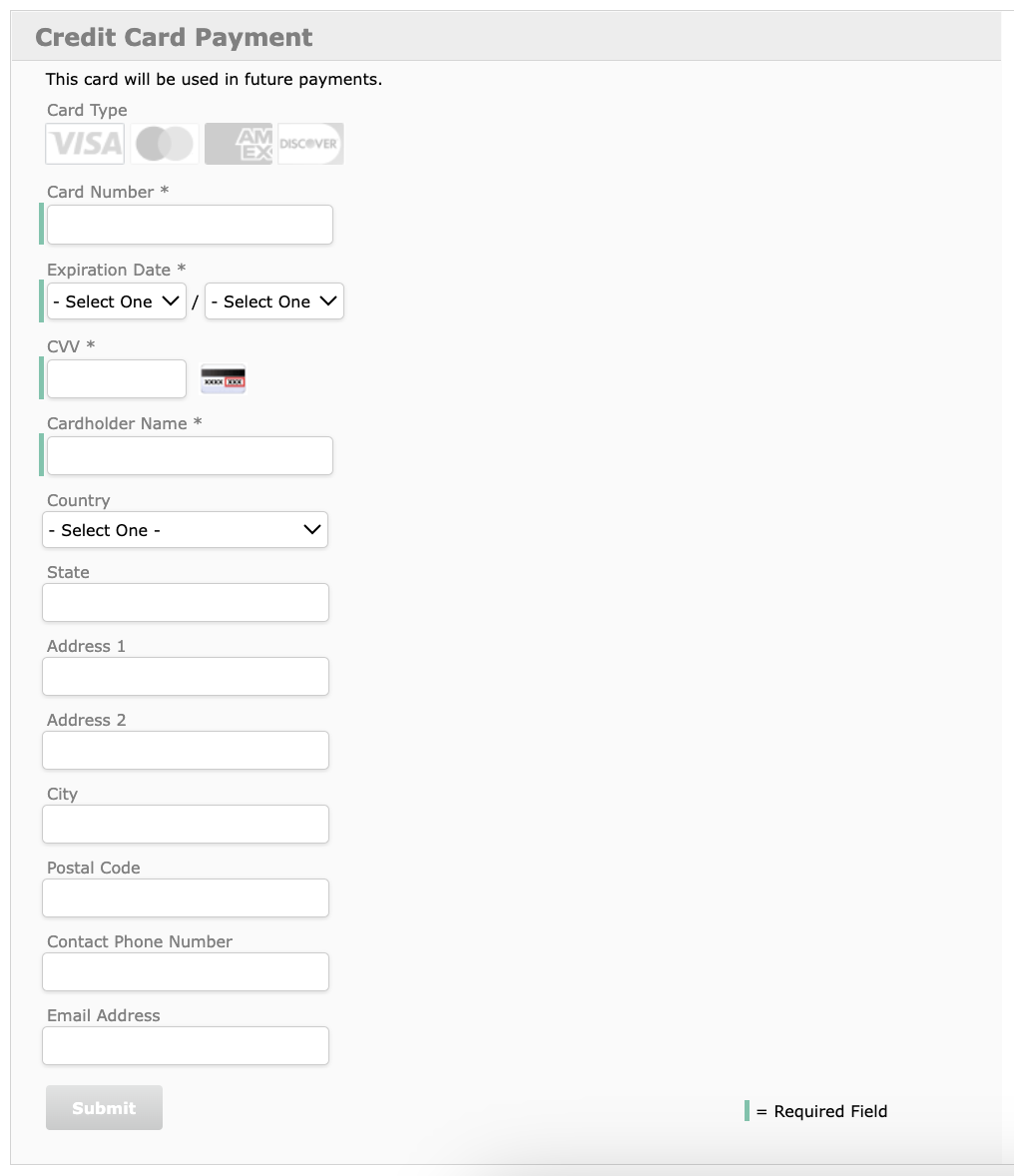

Payment Page Preview

To retrieve the hosted page URL that will be passed as a parameter when you load the hosted payment page, check the information in the Implementation Details section and note down Hosted Page URL.

For more information, see Preview the Payment Page.

Retrieve page ID

You have now created a hosted payment page. Complete the following steps to retrieve the page ID. You will need to pass the page ID as one of the parameters when you load the hosted payment page in a later step.

  1. If you are on the Preview Hosted Payment Method Page page, click back to Hosted Pages List in the upper left of the page to navigate back to the Payment Pages tab.
  2. In the Page List section, find the payment page ( My First Payment Page ) you just created.
  3. In the Actions column, click Show Page Id .
  4. Note down the page ID.

(Optional) Update the CSS of your hosted payment page

Assuming you want to change the background color of the hosted payment page and want the legend for Required Field to be displayed in the upper right of the page, complete the following steps to update the CSS of your hosted payment page.

  1. Navigate to the Payment Pages tab > Page List section.
  2. Find My First Payment Page and click Edit .
  3. In the CSS field, make the following changes:
    • In the .form CSS selector, add the following declaration:

      Here is an example:

      .form {
        padding: 20px 16px;
        margin: 0 auto;
    • In the .required-desc selector, add the following declarations:
      position:absolute !important;
      top:5% !important;
      left: 70% !important;

      Here is an example:

         .required-desc {
               width: 24%;
               float: right;
               margin-top: 11px;
               border-left: 4px solid #6EC5AB;
               vertical-align: middle;
               position:absolute !important;
               top:5% !important;
               left: 70% !important;
  4. Click Generate and Save Page .

Your page will look like the following screenshot:

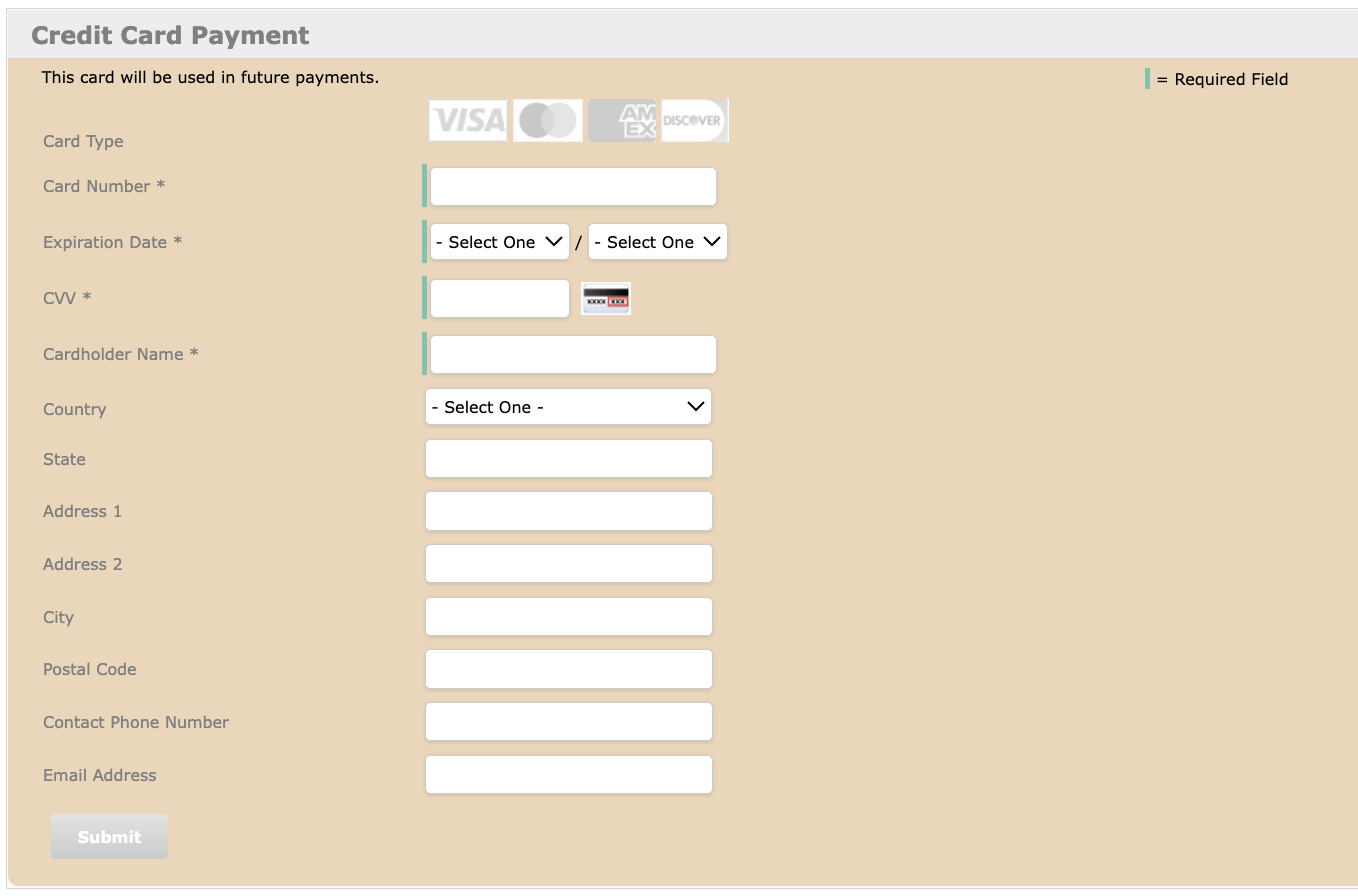

Payment Page with custom CSS

For more information about designing CSS for hosted payment pages, see Design Payment Pages CSS.

Step 3 Get the payment page up and running

Now you need a web server to host this created payment page. To quickly get the payment page up and running, you can use Zuora's official Sample Payment Page.

Fork the sample payment page

Take the following steps to create a new fork:

  1. Log into your GitHub account.
  2. On the payment-page-samples repository page, click Fork .
  3. On the Create a new fork page, select the owner of the forked repository and specify the repository name. Leave other settings unchanged.
  4. Click Create fork . Then your fork is created.
  5. Clone the forked repository to your local environment.

Update configuration files

In the cloned payment-page-samples repository, the /conf folder stores multiple configuration files across different environments and prepopulated values for form fields.

Update the configuration for the us_sandbox block in the /conf/config.json file as below:

Field Description Value
username It should be the username for a user with the API Write Access permission. It will be used to call the Zuora REST API.

You can also choose to leave it blank and specify oauth_token that you can get by calling the Create an OAuth token API operation.

password It should be the password for a user with the API Write Access permission. It will be used to call the Zuora REST API.

You can also choose to leave it blank and specify oauth_token that you can get by calling the Create an OAuth token API operation.

oauth_token The OAuth token generated by calling the Create an OAuth token API operation.

If you specify this token, you do not need to specify the username and password fields.

rsa_signature The endpoint for the Generate an RSA signature API operation. /v1/rsa-signatures
zuora_base_url Base URL for the Zuora's RSA Signature API. Update it to the corresponding base URL if you are not using a US 2 API Sandbox tenant. (for the US 2 Sandbox tenant)
payment_page_url Zuora's Payment Page URL. (for the US 2 Sandbox tenant)
pageId ID of the Payment Page you configured in your tenant. You can get this ID by navigating to Settings > Payments > Setup Payment Page and Payment Link > Page List > Show Page Id in your US Cloud 2 API Sandbox tenant. {pageId_from_your_tenant}
accountId (Optional) The ID of the customer account present on the Zuora side. If any transaction is performed after a payment method is created, the transaction can be associated with an account through accountId. Specify the {account_id} of an account with which the payment method will be associated.
publicKey The public key that you downloaded from your tenant. {public_key_from_tenant}

Clear the sample prepopulated fields

Because this payment page is only used to collect credit card payment method information, you do not need to preload any values for the payment page form fields.

Now you need to clear the sample prepopulated values for the creditCard block configured in /conf/prepopulate.json. You can also choose to clear the rest of the prepopulated values for other types of payment methods or leave them unchanged.

See the following prepopulate.json as an example:

    "creditCard": {
        "creditCardAddress1": "",
        "creditCardAddress2": "",
        "creditCardCountry": "",
        "creditCardHolderName": "",
        "creditCardNumber": "",
        "creditCardExpirationYear": "",
        "creditCardExpirationMonth": ""

Start the server

In the terminal, navigate to the cloned payment-page-samples folder, then run the following command:

$ npm install

After the package-lock.json and the node_modules folder are successfully installed, run the following command to start the server:

$ npm start

If no error occurs, open http://localhost:3000 in the browser, then you should see the following page:

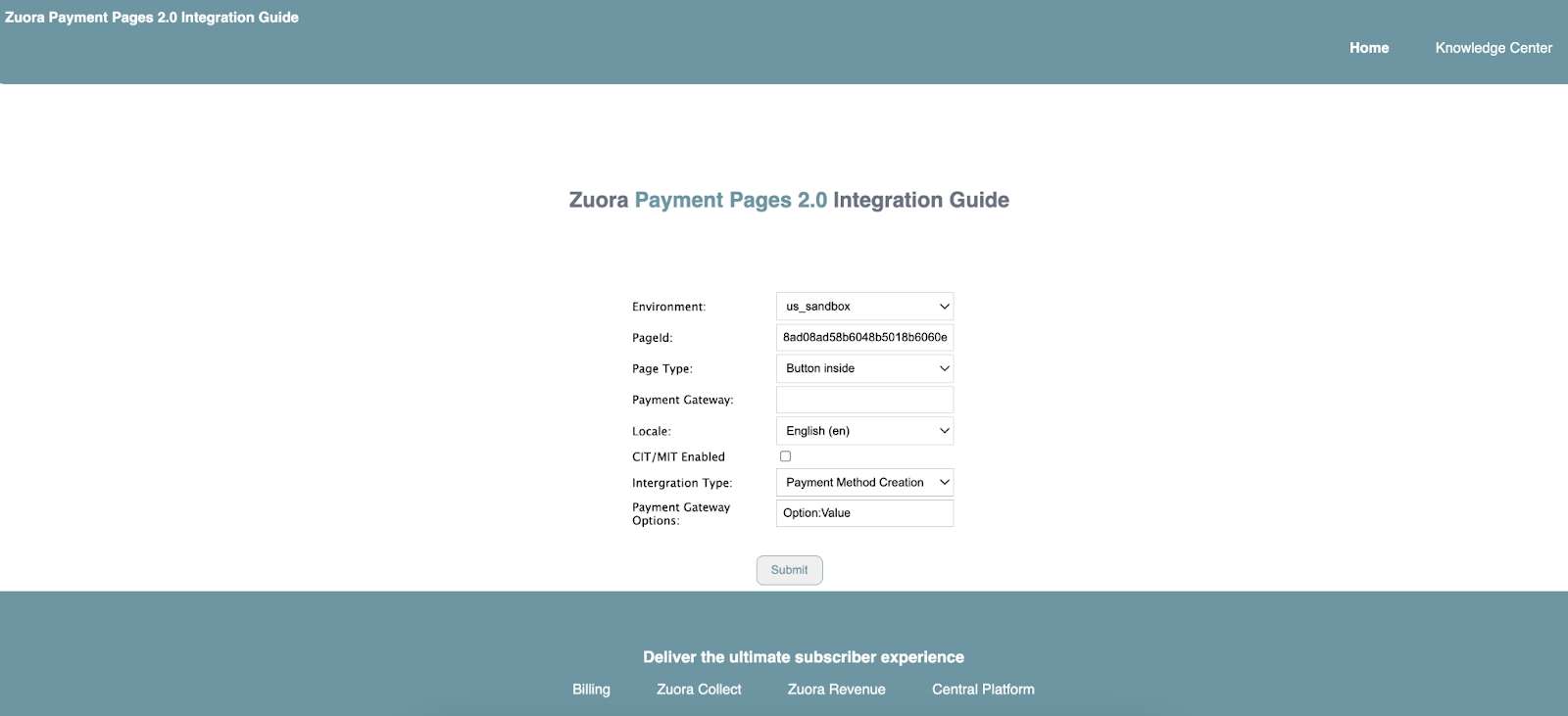

Payment Page Configuration Page

This page is the start page where you can configure which Payment Page will be shown and which transaction type you want to perform using this Payment Page.

Verify that the Payment Page is working

On the Zuora Payment Pages 2.0 Integration Guide page, take the following steps to start testing the Payment Page:

  1. Verify if the payment page can be successfully rendered:

    a. Configure the form as below:

    Form Field Value
    Environment Select us_sandbox.
    PageId PageId is auto-populated from /conf/config.json.
    Page Type Select Button inside
    Payment Gateway Leave it blank.
    If you specify this field, it will be used to override the default test gateway configured in the payment page form.
    Locale Leave the default selection unchanged.
    CIT/MIT Enabled Leave it unselected
    Integration Type Select Payment Method Creation
    Payment Gateway Options Leave it unchanged

    b. Click Submit. If the Payment Page is loaded, you can proceed to the next step; otherwise, you should troubleshoot based on the error message. For more information, see Troubleshooting for more information.

  2. Verify if the payment page is working as expected:

    a. Specify the following required fields in the Payment Page:

    Field Value
    Card Number 4111111111111111
    Expiration Date 01/2034
    CVV 737
    Cardholder Name Amy Lawrence

    You can also specify values in invalid formats to verify if your customized error message takes effect. For example, setting the expiration date to a date in the past.

    b. Click Submit. You should receive the following response.

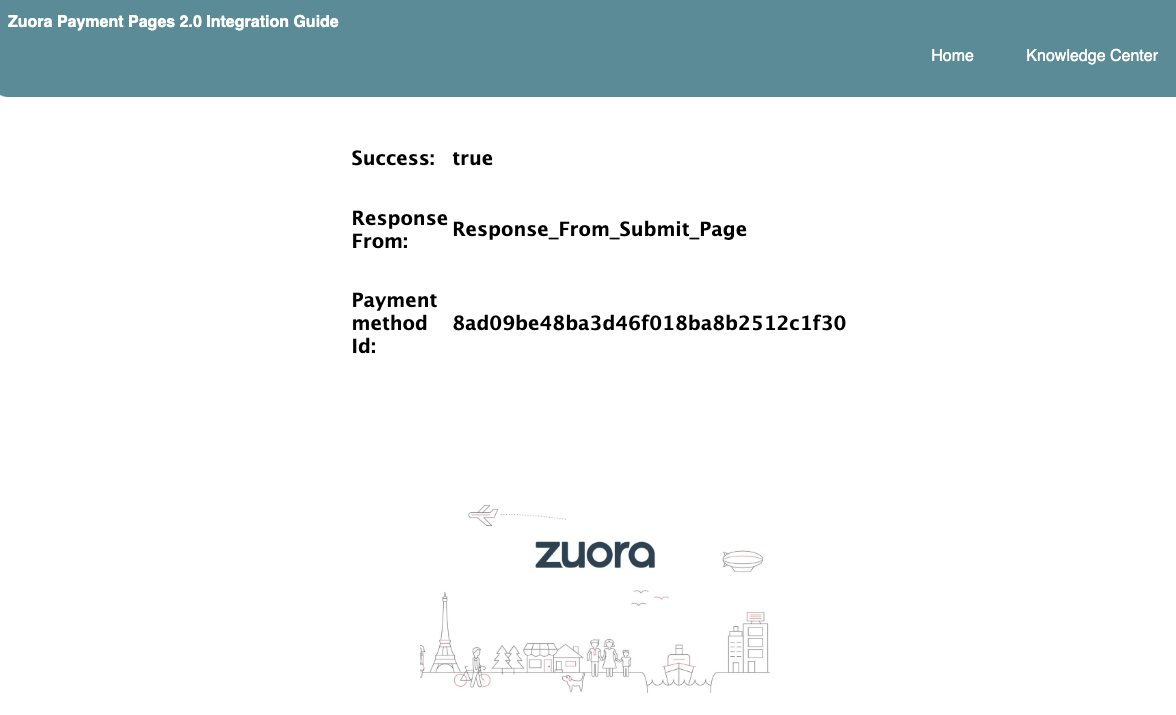

    Payment Method Creation Result

    c. Verify that the payment method is successfully created through the UI.

    1. Go back to the Zuora UI of the US 2 Sandbox tenant.
    2. Click Payments > Payment Methods . The customer account list with the payment method information is displayed.
    3. Locate the payment method you just created. It is usually displayed at the top of the payment method list.
      • If you have specified the accountId value, you can locate the created payment method by locating the associated account.
      • If you did not specify accountId , you can locate the created payment method by cross-comparing the last 4 digits of the Card Number value and the Last Transaction value.
  3. (Optional) You can repeat Step 1 to 2.b and specify values in invalid formats to verify if your customized error message takes effect. For example, setting the expiration date to a date in the past.

Now your sample payment page is all set. You can change the configuration to see how the Payment Page is rendered in different ways, such as presenting a payment page using the overlay format.


The following table describes the most frequently encountered issues when integrating with your websites:

Issue Possible root causes Solution
The payment page is not loaded to the intended webpage. The specified domain or port for the payment page configuration does not match the domain or port on which your server is running. In the Zuora UI, check the value specified in the Hosted Domain field for the payment page and ensure that the domain and port match your website's domain and port.
The RSA signature or token is not generated successfully or not passed into the payment page properly. Check your code that calls the Generate an RSA signature operation and ensure that the request succeeds. For more instructions, see Generate and manage the Digital Signature and Token for Payment Pages 2.0.
The configuration in the /conf/config.json has conflicts. For example, the pageId does not exist for the specified environment. Check the configuration file to make sure that the payment page settings are correct.
Zuora Javascript library is not imported to the intended web page. Check the client-side web page code to ensure that the Zuora JS library is imported into your web page.
After submitting the payment page form with the required fields specified, the payment method is not created successfully or the payment transaction failed. Not all client parameters required by the gateway are submitted to the server. Check if all necessary client parameters are provided in the loadPaymentPages function.

For a full list of client parameters, see Client Parameters for Payment Pages 2.0.

After entering illegal values into the form fields, the custom error handling does not take effect.
  • The error handling functions are not working as expected.
  • The errorMessageCallback function is implemented but you used Z.render() instead of Z.renderWithErrorHandler().
Check the callback and errorMessageCallback functions to ensure that they can work.

For more instructions, see the following pages:

Predefined credit card values are not prepopulated to the payment page.
  • The file that contains prepopulated values is invalid.
  • The prepopulated field values are handled incorrectly.
  • Check the file that stores prepopulated values and ensure that this file is valid.
  • Ensure that the prepopulating logic is working as intended.
The payment page is not displayed in the correct place. The <div id="zuora_payment" class="container container-center"></div> is not added to the correct place. Check the client-side webpage code and ensure that <div id="zuora_payment" class="container container-center"></div> is added to the intended place.
